Set spindle 1,5KW

Product detailed description

When ordering an inverter motor, you get 1-10m free cable + switching and programming the inverter. Please note the length of the cable yourself when ordering.

This engine is designed for operation from 6000 to 24000 rpm, max. tool diameter 10mm, must not overheat above 50 ° C and must be powered by a frequency converter that is professionally programmed.

Shipping is free of charge.

Package includes:

1x High-frequency motor 1.5KW
1x Frequency Converter 1.5KW
1x ER16 set

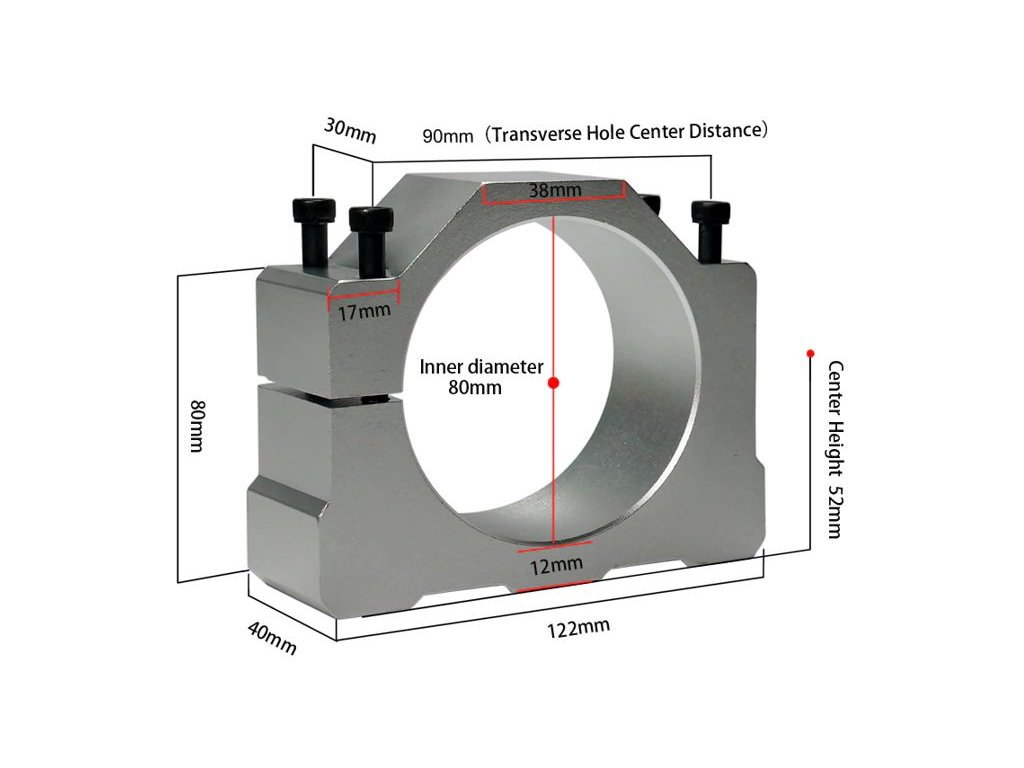

1x Mounting the engine
1x Cable 1-10m


Drive parameters:

Input voltage (V): 220-240 V
Output voltage (V): 0-240 VAC
Output frequency: 0-400 Hz
Output power: 1.5 KW
Output current: 9.0 A
Short-term load: 14.0 A
Input: 1 phase
Output: 3 phases


Engine Parameters:

Type: CC1500
Power: 1.5 KW
Max. revolutions: 24,000 rpm
Max frequency: 400 Hz
Voltage: 3x220 V
Current: 6.8 A
Weight: 5 kg
Size: 80x290 mm
Klieštiny: ER16
