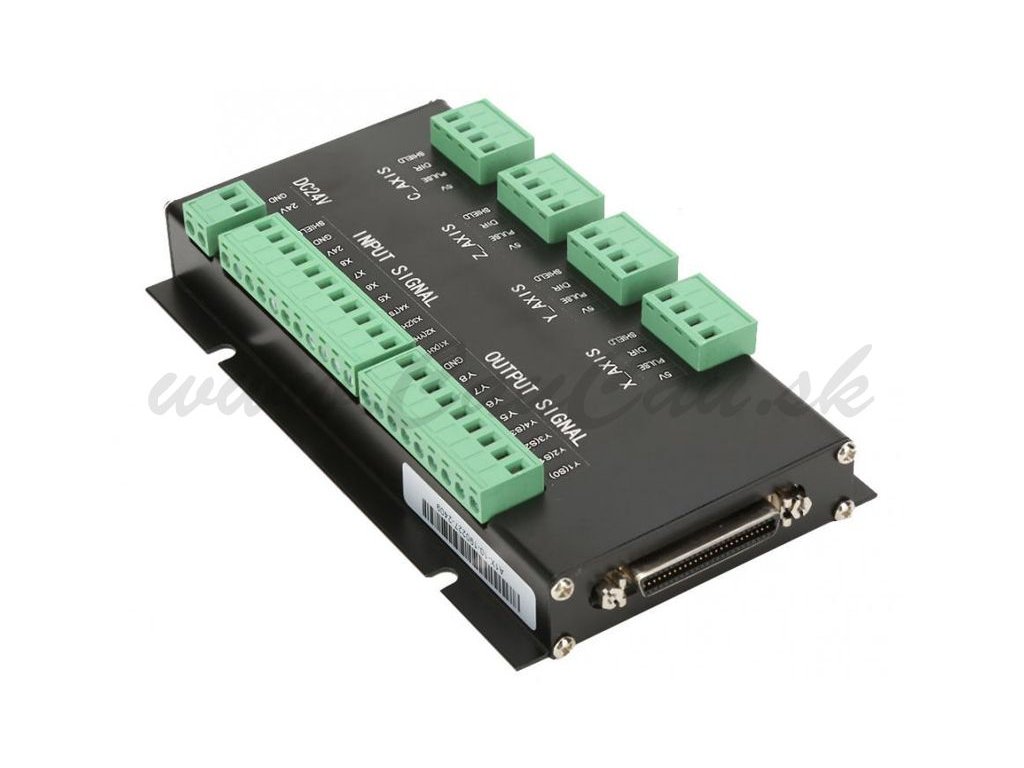

RichAuto B18E
Code: 1402Related products
Product detailed description
Product Feature
Product Feature
• New 4-axis linkage motion mode to achieve comprehensive controlling
• Support XYZ axis driver and spindle error alarm function
• Support 9 workpiece coordinates, 8 breakpoints storage positions.
• Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.
• Support intelligent file checking function.
• The fourth axis can be set as a normal axis or a rotary axis.
• Parameter backup and restore function to prevent the loss of important parameters.
• High anti-jamming intensity passes many CE tests.
• Intelligent processing memory, supports power fail safeguard and breakpoint function.
• Definable I/O interfaces provide customers a wide range of development platforms.
Product Parameters
| Product Model | RichAuto----A18 |
| CPU | DSP |
| Internal Memory | 512Mb |
| Display Screen | 128*64 Monochrome LCD |
| Communication Port | USB |
| Controlled Axis Number | 4 axis |
| Control Signal | differential signal |
| Drive System | step motor/servo motor |
| Minimum Input Unit | 0.001mm |
| No Volt Protection | Support |
| Breakpoint Processing Function | Support |
| External Power Supply Voltage | 24V DC |
| Manual Mode | Continuous、point move、distance |
| Interpolation Method | line、arc、curve |
| Soft/Hard Limit | support |
| Maximum Pulse Frequency | 1M/S |
| Password Protection | support |
| Support Language | simple Chinese/traditional Chinese、English、other languages |
| Standard Configuration | (1) DSP Handle；(1) 50 core cable (1)USB cable； (1)8 I/O Wiring board |
Additional parameters
| Category: | Control cards |
|---|---|
| Weight: | 1 kg |
| Pozícia v sklade: | Rad 3 polica 3 |
