Main board Profi4

Stable and reliable machine control

It allows software control spindle speed

It allows you to connect up to 5 driver. engines

5 input signals

3 relay (eg. For switching spindle cooling ...)

15-32VDC operating voltage and 5V USB

Use software Mach3, EMC2, KCAM4 and other...

Dimensions 110 x 75 x 25 mm

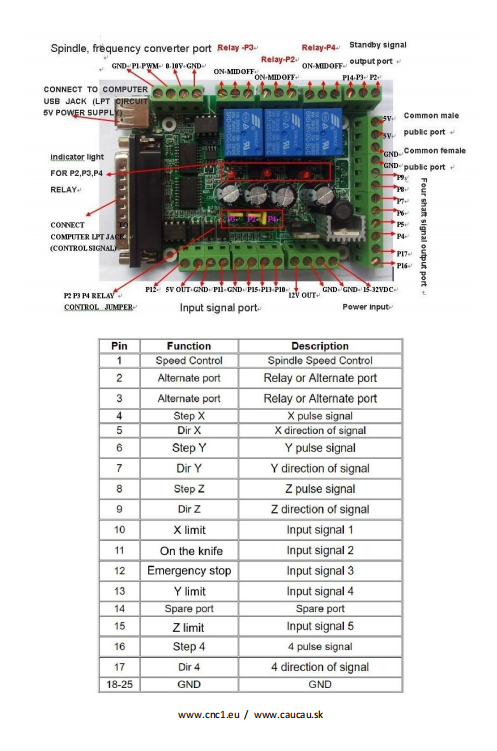

Parallel port description:

Pin	Function	Description
1	Speed control	Spindle speed control
2	Alternate port	Relay or signal
3	Alternate port	Relay or signal
4	Step X	X pulse signal
5	Dir X	X direction of the signal
6	Step Y	Y pulse signal
7	Dir Y	Y direction of the signal
8	Step Z	Z pulse signal
9	Dir Z	Z direction of the signal
10	X limit	Input signal 1
11	On the knife	Input signal 2
12	Emergency stop	Input signal 3
13	Y limit	Input signal 4
14	Spare port	Spare port
15	Z limit	Input signal 5
16	Step 4	4 pulse signal
17	Dir4	4 direction of the signal
18-25	GND	GND

Files for Download:

Profi4 Main Board Description

Profi4 Main Board Manual

More informations here.
