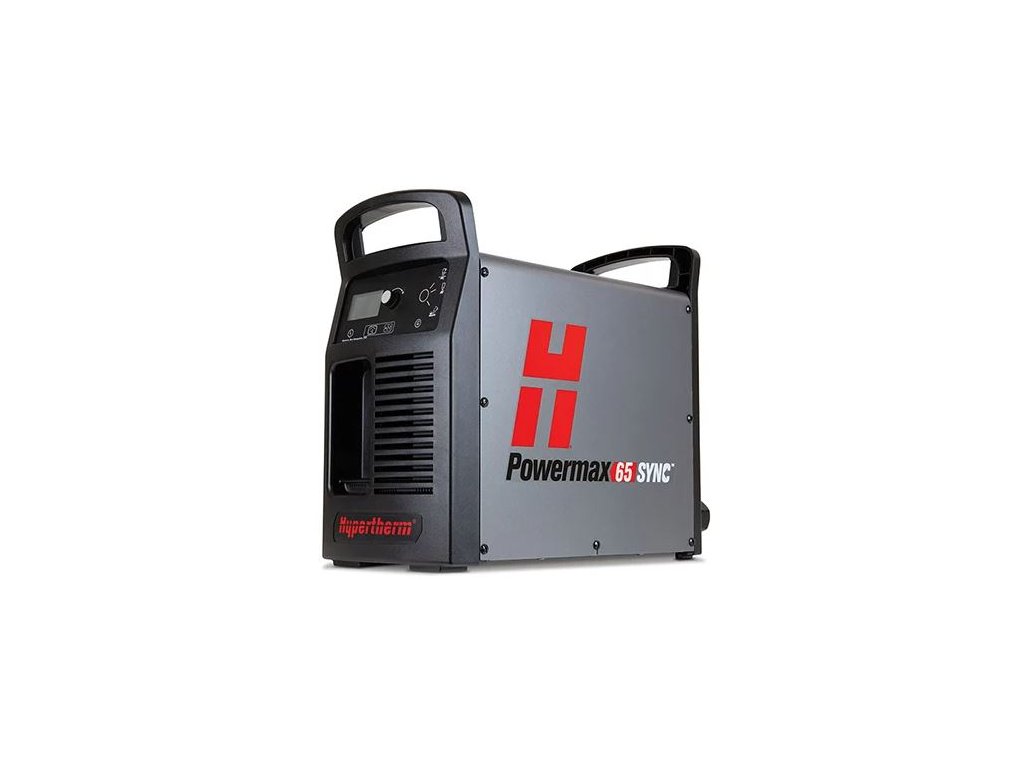

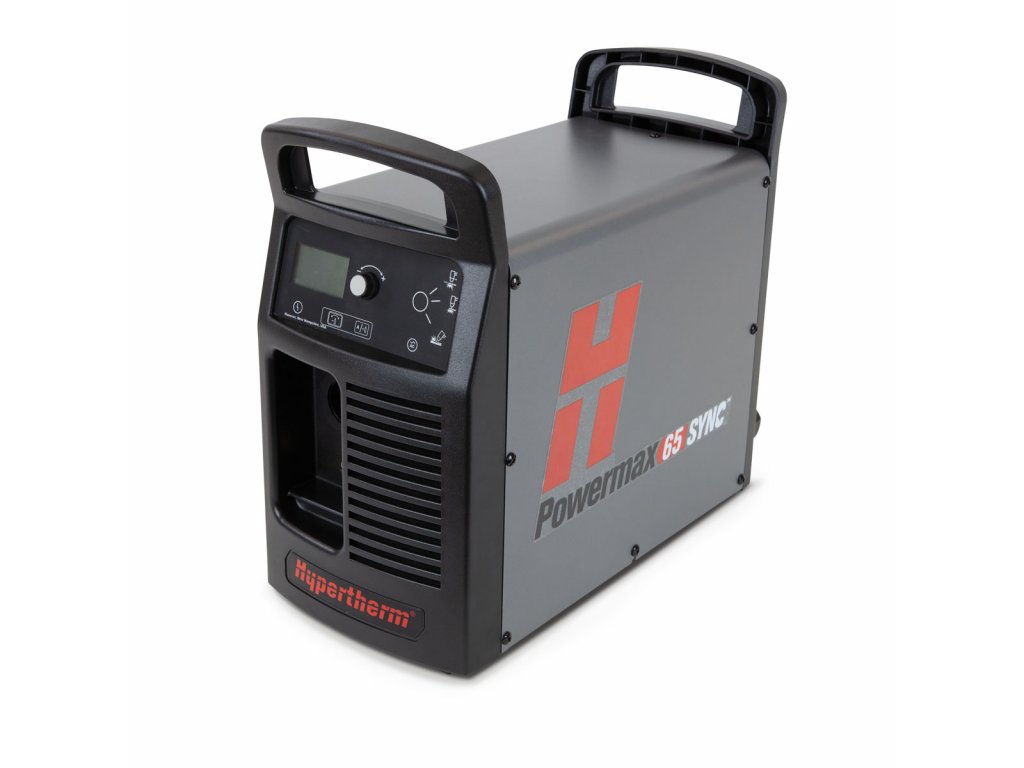

Powermax65 SYNC plasma
Code: 083368Product detailed description
The Powermax65 SYNC® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for cutting and gouging up to 20 mm (3/4″). Featuring automated system process set-up via advanced RFID-enabled SmartSYNC® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax65 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.
Parameters:
|
Model: Input voltages: Kilowatt output: Input current: Output current: Rated output voltage: Duty cycle @ 104° F: Open circuit voltage (OCV): Dimensions with handles: Weight w/7.6 m (25′) torch: Gas supply: Optimum inlet gas pressure: Minimum inlet gas pressure: Recommended inlet gas flow rate:
Input power cable length: Power supply type: Engine drive requirement: Warranty: |
Powermax65 200-480 V, 1-PH, 50/60 Hz 200-600 V, 3-PH, 50/60 Hz 9KW 200/208/240/480 V, 1-PH 52/50/44/22 A @ 9 kW 200/208/240/480/600 V, 3-PH 32/31/27/13/13 A @ 9 kW 20-65 A 139 VDC 50 % PRI 65 A, 230-600 V, 1/3-PH 40% @ 65 A, 200-208 V, 1/3-PH 100% @ 46 A, 230-600 V, 1/3-PH 295 VDC 483 mm D; 233 mm Š; 430 mm 29kg Clean, dry, oil-free air or nitrogen 7,6-8,3 bar (110-120 psi) 5,2 bar (75 psi) Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi) Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi) 3m Invertor - IGBT 15 kW pre plný výkon 65 A YES |
Additional parameters
| Category: | Hypertherm |
|---|---|
| Weight: | 31 kg |
