Powermax105 SYNC plazma
Code: 059701Product detailed description

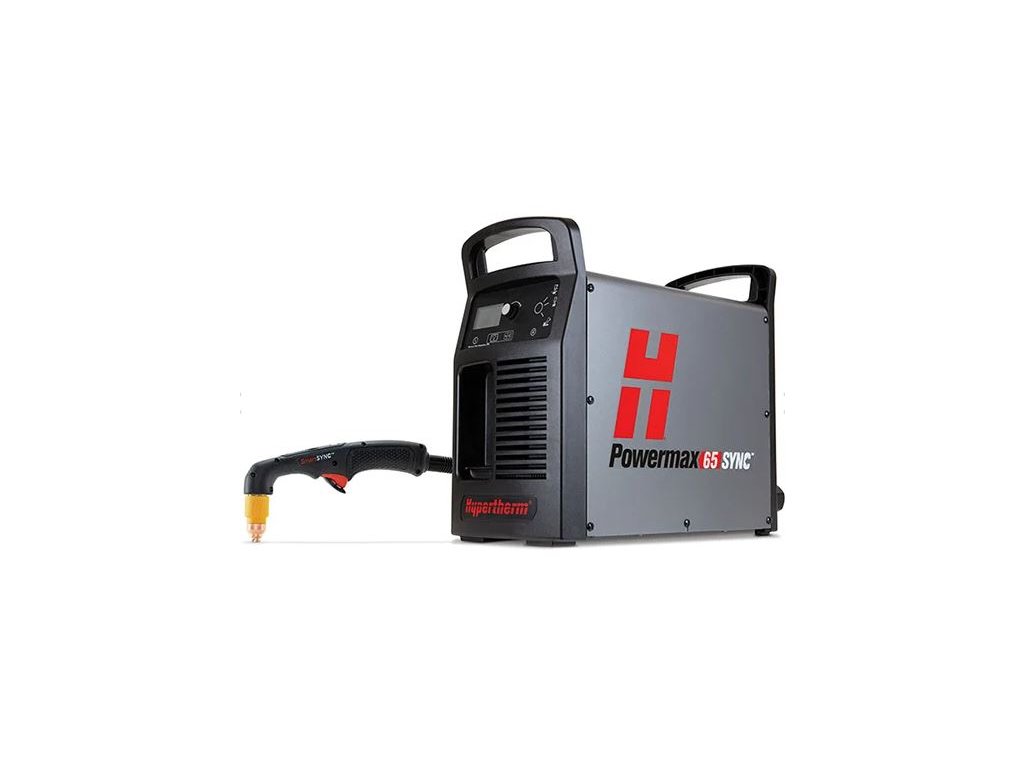

The Powermax65 SYNC® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for cutting and gouging up to 32 mm (1-1/4″). Featuring automated system process set-up via advanced RFID-enabled SmartSYNC® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax65 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.
Parameters:
|
Model: Input voltages: Kilowatt output: Input current: Output current: Rated output voltage: Duty cycle @ 104° F:
Open circuit voltage (OCV): Dimensions with handles: Weight w/7.6 m (25′) torch: Gas supply: Optimum inlet gas pressure: Minimum inlet gas pressure: Recommended inlet gas flow rate:
Input power cable length: Power supply type: Engine drive requirement: Warranty: |
Powermax105 200-600 V, 3-PH, 50/60 Hz 16,8KW 200/208/240/480/600 V 3-PH 58/56/49/25/22 A @ 16.8 kW 30–105 A 160 VDC 70% @ 105 A, 240 V, 3-PH 80% @ 105 A, 480–600 V, 3-PH 100% @ 94 A, 480–600 V, 3-PH 100% @ 88 A, 240 V, 3-PH 295 VDC 592 mm D; 274 mm Š; 508 mm 45,3kg Clean, dry, oil-free air or nitrogen 7,6-8,3 bar (110-120 psi) 5,5 bar (80 psi) Cutting: 260 I/min @ 5.9 bar (550 scfh, 9.2 scfm @ 90 psi) Gouging: 260 I/min @ 4.8 bar (550 scfh, 9.2 scfm @ 70 psi) 3m Invertor - IGBT 30 kW pre plný výkon 105 A YES |
Additional parameters
| Category: | Hypertherm |
|---|---|
| Weight: | 46 kg |
