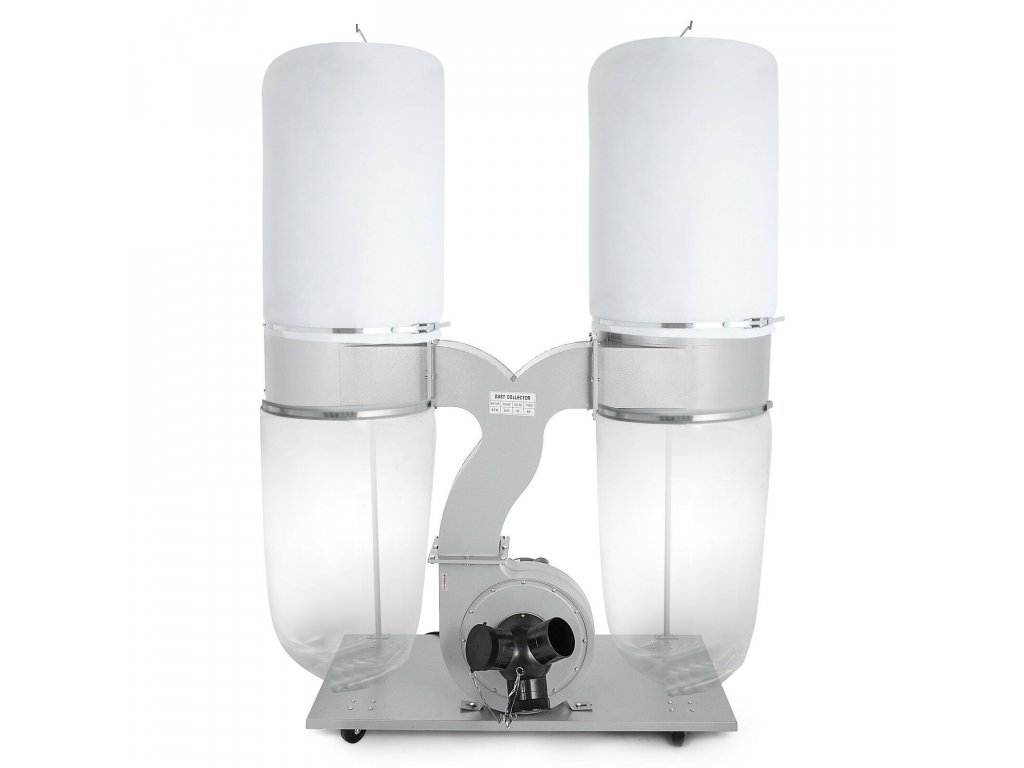

Extraction System Cau Cau 300 3HP 400V

Product detailed description

The most powerful mobile hood in the range. The connection of the fan and the filters is ensured by a metal pipe (with a reinforced edge at the current dividing point). The low center of gravity guarantees good stability of the hood. Included is a triplet that can reduce the standard fan inlet (150mm) to 3 hoses with a diameter of 100mm (2 holes can be covered with a blanking plug). Suction power 1,75kPa. The filter columns are designed to rotate the aspirated material along the filter wall and direct it into the lower bag.

parameters:

Weight - 57kg

Connecting socket - 150 / 3x100mm

Fan diameter - 300mm

Max. Filtration area - 5,6m2

Package size - 1170x560x570mm

Power supply - 400V

Equipment dimensions - 1410x560x1950mm

Waste bag volume - 300L

Filter frame - 495mm

Air flow - 6000m3 / h

Electric power - 3000W
