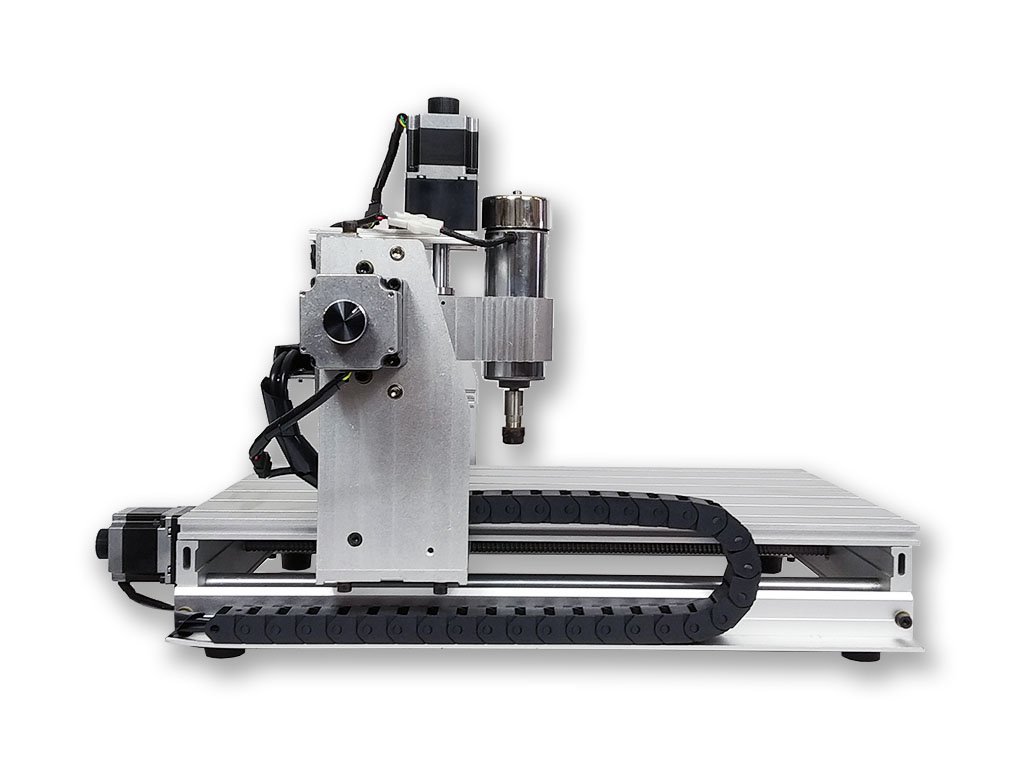

    CNC Router Kompas H3040

    Code: H3040
    Not rated
    Brand: Cau Cau
    Kompas H3040 002
    1 400 € 1 680 € incl. VAT
    Sold Out
    Computer
    CAD/CAM Software
    Delivery offer
    • Work space: 280 x 390 x 55 mm
    • Maximum speed: 2000 mm/min
    • Accuracy: 0.05 mm
    • Spindle: 500W High frequency asynchronous
    • Spindle speed: 3000 - 12000 rpm/min
    • Spindle chuck: ER11 (1-6 mm)
    • Control software: Mach3
    • Auto tool zero probe: Yes
    • Construction: Aluminum
    • Drive: Stepper Motors Nema23
    • Rails X/Y/Z: Ball
    • Transmmission X/Y/Z: Ball screws
    • Dimensions: 615 x 485 x 390 mm
    • Set of tools: Yes 10pcs
    • Training: Yes
    • Support: Phone/Online
    • Warranty: Yes

    Detailed information

    Related products

    Kompas H1000 Complete 02
    CNC Router Kompas H1000Basic
    2-3 weeks
    2 988 € incl. VAT
    2 490 €
    Detail

    Work space: 600 x 850 x 150 mm Maximum speed: 800 mm/min Accuracy: 0.03 mm Spindle: 710W Carbon Spindle speed: 6000 - 32000 rpm/min Spindle chuck: (3,6,8 mm) Control...

    Code: H1000BASIC
    CNC Router H1000 HF 02
    CNC Router Kompas H1000HF
    2-3 weeks
    3 468 € incl. VAT
    2 890 €
    Detail

    Work space: 600 x 850 x 150 mm Maximum speed: 1200 mm/min Accuracy: 0.03 mm Spindle: 1500W High frequency asynchronous Spindle speed: 6000 - 24000 rpm/min Spindle chuck:...

    Code: H1000HF
    Kompas H1000 GS 02
    CNC Router Kompas H1000GS
    In stock (2 pcs)
    3 948 € incl. VAT
    3 290 €
    Detail

    Work space: 600 x 850 x 150 mm Maximum speed: 2400 mm/min Accuracy: 0.03 mm Spindle: 1500W High frequency asynchronous Spindle speed: 6000 - 24000 rpm/min Spindle chuck:...

    Code: H1000GS
    Cut2D Desktop
    FREEFREE
    Cut2D Desktop
    In stock (95 pcs)
    162 € incl. VAT
    135 €
    Code: 1140
    VCarve Desktop
    FREEFREE
    VCarve Desktop
    In stock (77 pcs)
    396 € incl. VAT
    330 €
    Code: 1145
    Aspire
    FREEFREE
    Aspire
    In stock (98 pcs)
    2 160 € incl. VAT
    1 800 €
    Code: 1141
    Kompas H1000 GS 02
    CNC Router Kompas H2000GS
    2-3 weeks
    5 988 € incl. VAT
    4 990 €
    Detail

    Work space: 1000 x 1700 x 150 mm Maximum speed: 2400 mm/min Accuracy: 0.03 mm Spindle: 1500W High frequency asynchronous Spindle speed: 6000 - 24000 rpm/min Spindle chuck:...

    Code: H2000GS
    CNC Freza Kompas H400 Komplet 001
    CNC Router Kompas H400Basic
    2-3 weeks
    2 748 € incl. VAT
    2 290 €
    Detail

    Work space: 300 x 400 x 150 mm Maximum speed: 800 mm/min Accuracy: 0.03 mm Spindle: 710W Carbon Spindle speed: 6000 - 32000 rpm/min Spindle chuck: (3,6,8 mm) Control...

    Code: H400BASIC
    Show all related products Previous product Next product

    Product detailed description

    The CNC Machine assembled and tested in the EU!

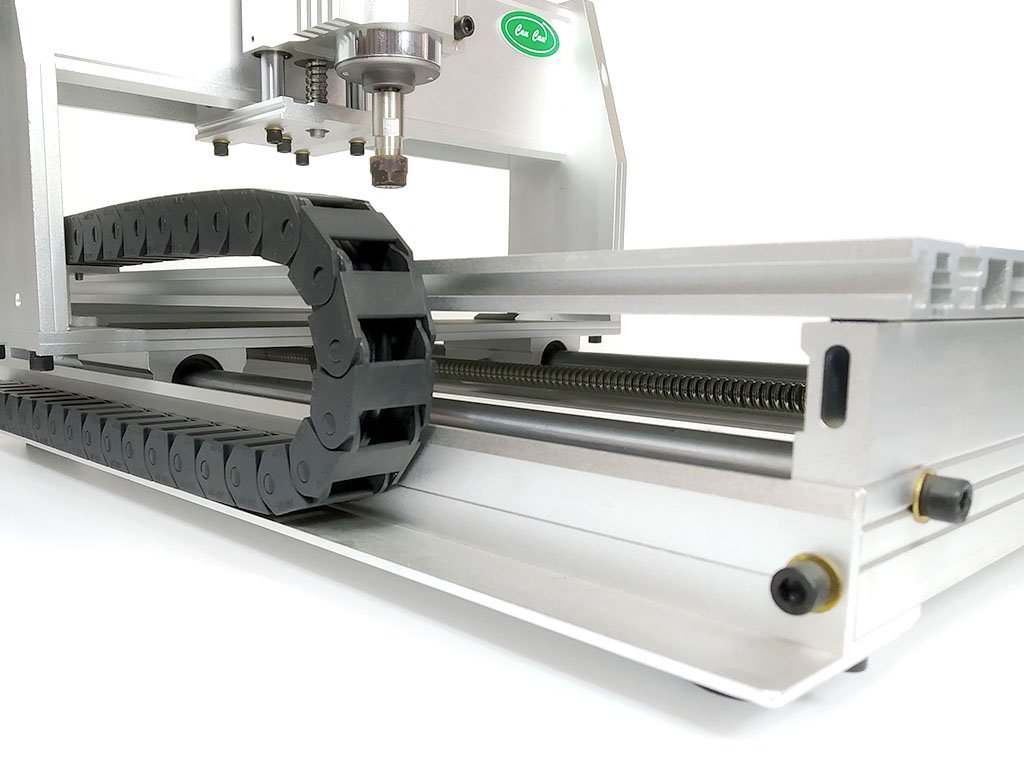

    CNC router suitable for engraving and milling materials such as plastic, wood, plexiglass and many others. The machine has ball screws for highest precision. The machine is equipped with a 500W spindle with a maximum speed 12000 rpm. The machine is controlled by the Mach3 software for easy operation which can do everyone. You can also buy a Vectric software such as Cut2D, VCarve, Aspire and many others .. in these softwares you can easily and quickly prepare your products. The machine can be customized to your requirements.

    The CNC machine includes:

    • CNC Machine Kompas H3040
    • 500W Spindle
    • Tool length sensor
    • 10 pcs of tools
    • Collet set ER11
    • Wrenches
    • Mach3 software
    • Basic training
    • Support
    • Warranty

    The machine is suitable for processing:

    • Wood, Plywood, MDF
    • Plastic, Plexiglas, PVC
    • Composite, PCB, Laminate
    • Foam, Foil, Leather
    • Rubber, Cardboard









    All videos you can watch here: YouTube



    In case of any questions, do not hesitate to contact us.



    Miroslav Dudas

    +421 915 451 978

    info@cnc1.eu



    Jan Dudas

    +421 905 248 550

    cnc1@cnc1.eu



    Additional parameters

    Category: CNC Routers
    Weight: 25 kg
