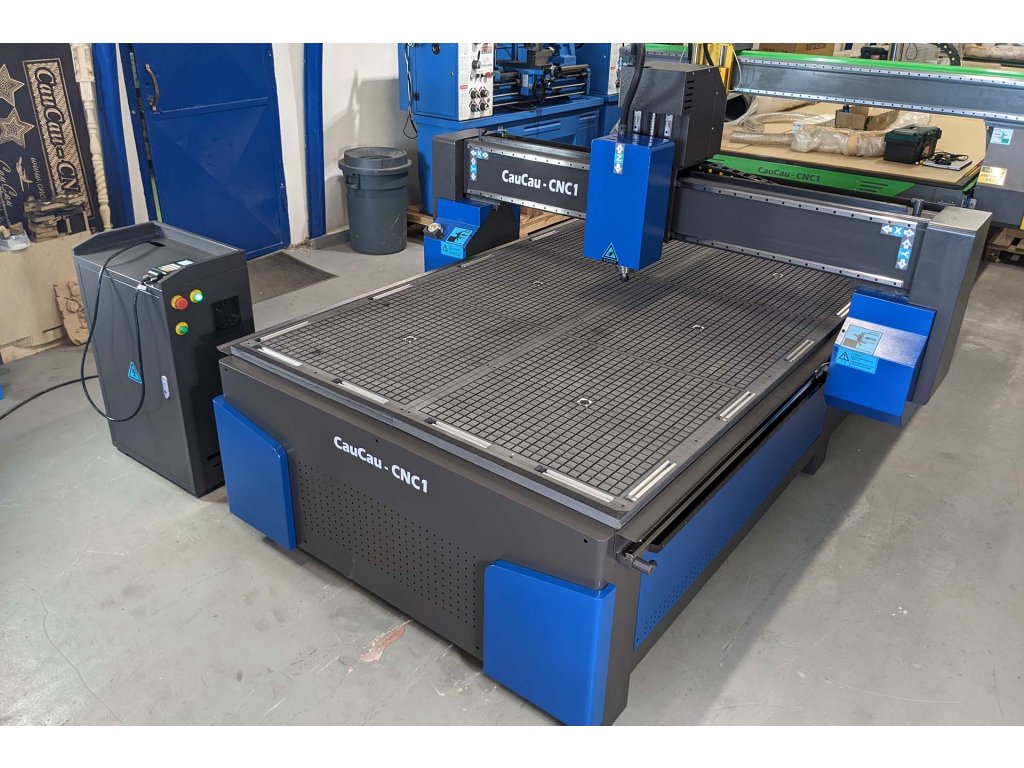

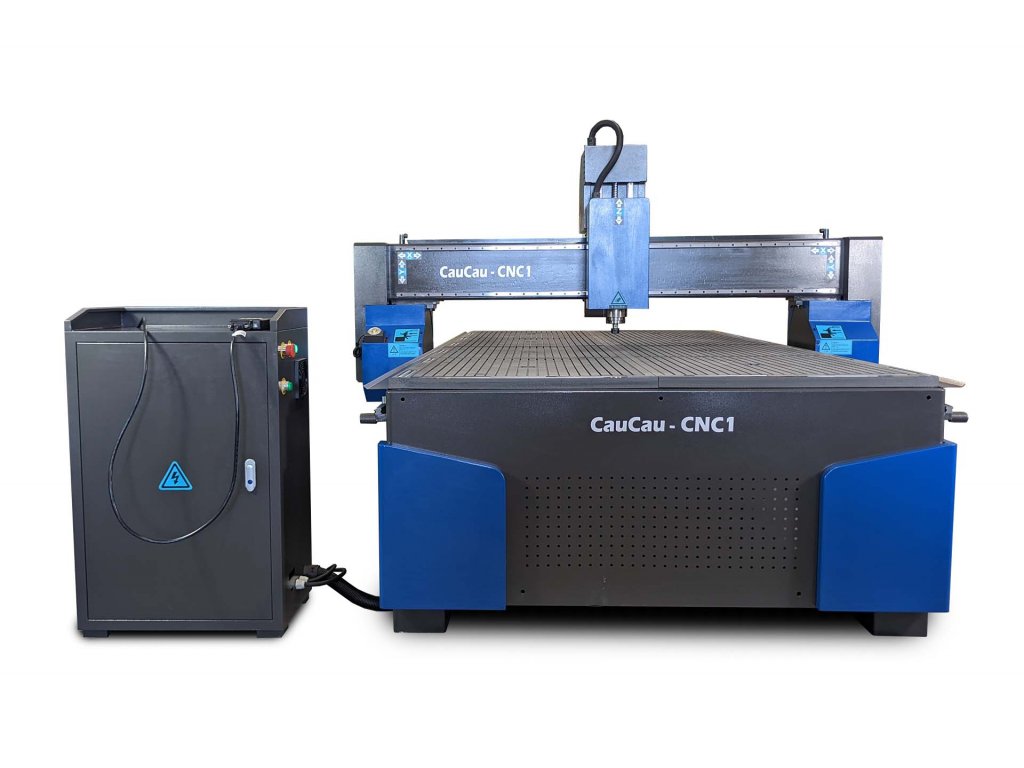

CNC Router Kompas H3000VAC

Code: H3000VAC

Sold more than 200ks

Not rated

Brand: Cau Cau

7 900 € 9 480 € incl. VAT

8-12 weeks

Delivery offer
Computer
CAD/CAM Software
4th rotary axis
Extraction
ATC ?
Front T-Slot Table ?

Work space: 1250 x 2500 x 200 mm
Maximum speed: 10000 mm/min
Accuracy: 0.03 mm
Spindle: 3500W High frequency asynchronous water cooled
Spindle speed: 6000 - 24000 rpm/min
Spindle chuck: ER20 (1-13 mm)
Control software: RichAuto
Control electronics: Profi6 RichAuto

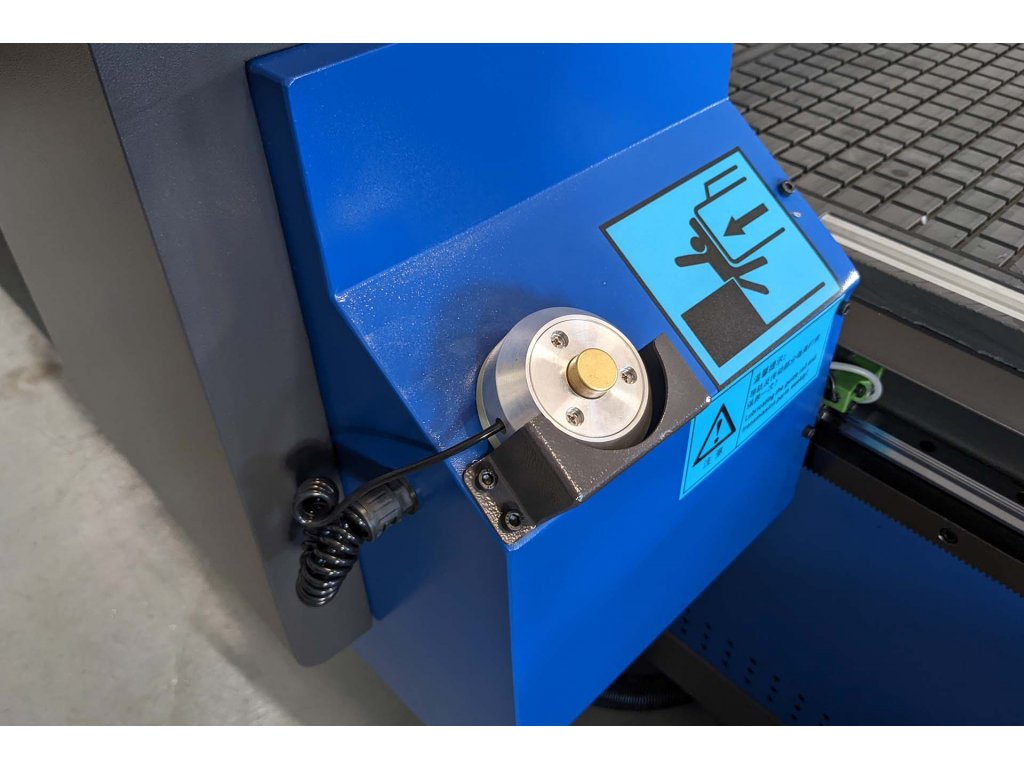

Sensors: Yes induction
Auto tool zero probe: Yes
Lubrication: Central manual
Table: Vacuum with T-slot
Vaccum pump: 5,5KW
Construction: Welded metal
Drive: Stepper Motors Nema34 8Nm
Rails X/Y/Z: Prismatic HGR20
Transmmission X/Y/Z: Helical racks + Ball screw
Dimensions: 2050 x 3100 x 1700 mm
Set of tools: Yes 10pcs
Training: Yes
Support: Phone/Online
Warranty: Yes

Detailed information

Show all related products

Product detailed description

CNC machine assembled and tested in the EU!

CNC milling machine suitable for processing large format materials, engraving, marking, milling, carving... various materials such as plastic, plexiglass, laminate, plywood, wood, MDF and many others. The whole machine is designed for demanding operation in production. High-quality HGR20 prismatic linear guides on all axes complemented by a rack drive that enables high speed. Stepper motors Nema34 allow, the machine processing hard materials. All axes are provided with inductive end sensors, which also serve to align the machine zero. The machine is controlled by the RichAuto system for easy operation that anyone can handle and high system stability.

We are a machine manufacturer, we will be happy to adapt the machine to your requirements, or we can make a custom-made machine for you.

The CNC machine includes:
