CNC Router Kompas H3000BIGVAC

Code: H3000BIGVAC

Action Sold more than 200ks

Not rated

Brand: Cau Cau

12 900 € –23 %

12 900 € –23 % 9 900 € 11 880 € incl. VAT

4-8 weeks

Delivery offer
Computer
CAD/CAM Software
4th rotary axis
Extraction
ATC ?
Front T-Slot Table ?

Work space: 1500 x 3000 x 200 mm
Maximum speed: 15000 mm/min
Accuracy: 0.03 mm
Spindle: 3500W High frequency asynchronous water cooled
Spindle speed: 6000 - 24000 rpm/min
Spindle chuck: ER20 (1-13 mm)
Control software: RichAuto
Control electronics: Profi6 RichAuto
Sensors: Yes induction

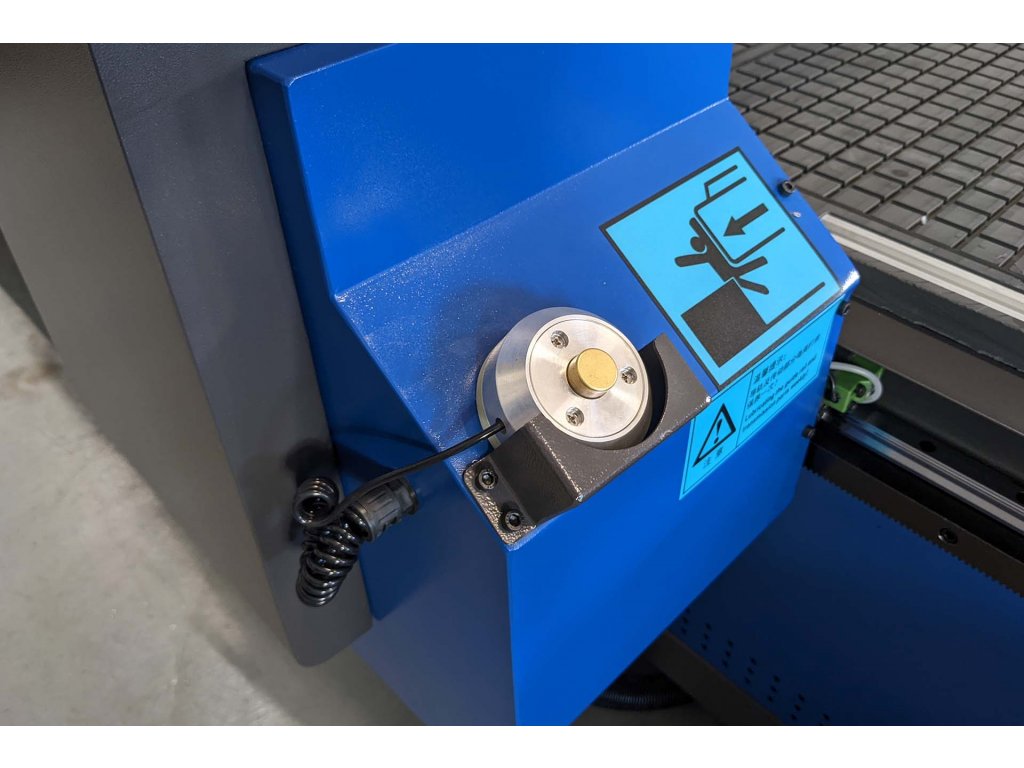

Auto tool zero probe: Yes

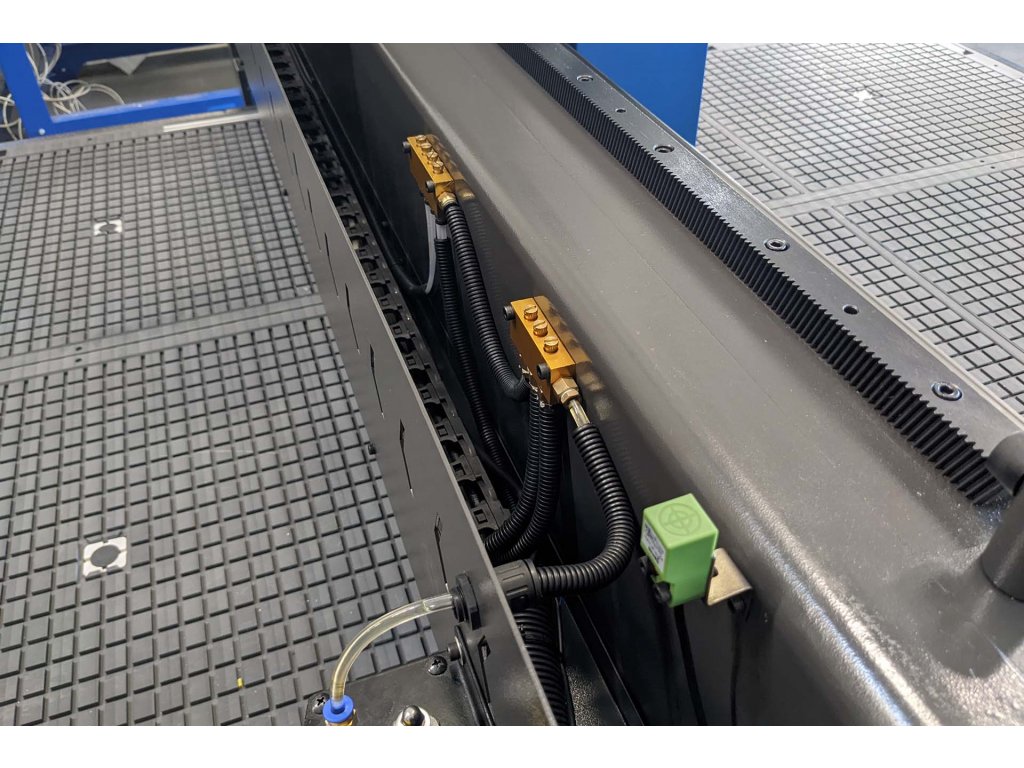

Lubrication: Central manual
Table: Vacuum with T-slot
Vaccum pump: 5,5KW
Recovery function: Yes
Construction: Welded metal
Drive: Stepper Motors Nema34

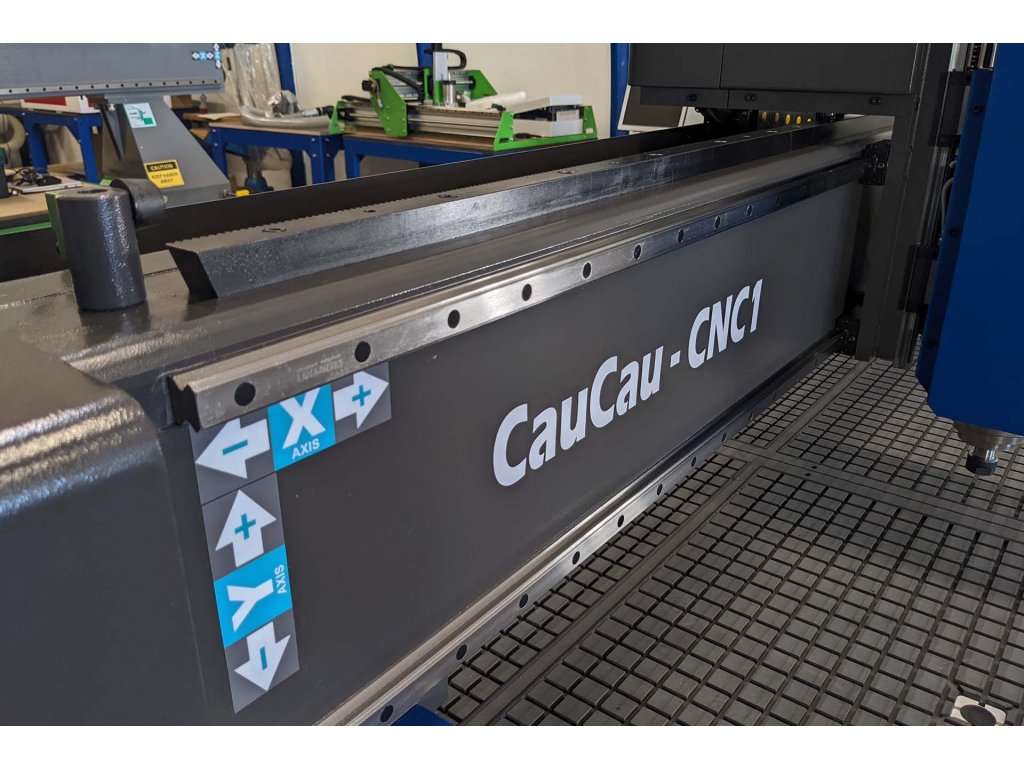

Rails X/Y/Z: Taiwan HIWIN 20mm
Transmmission X/Y/Z: Helical racks + Ball screw
Dimensions: 2300 x 3600 x 1700 mm
Set of tools: Yes 10pcs
Training: Yes
Support: Phone/Online
Warranty: Yes

Detailed information

Show all related products

Product detailed description

CNC machine assembled and tested in the EU!

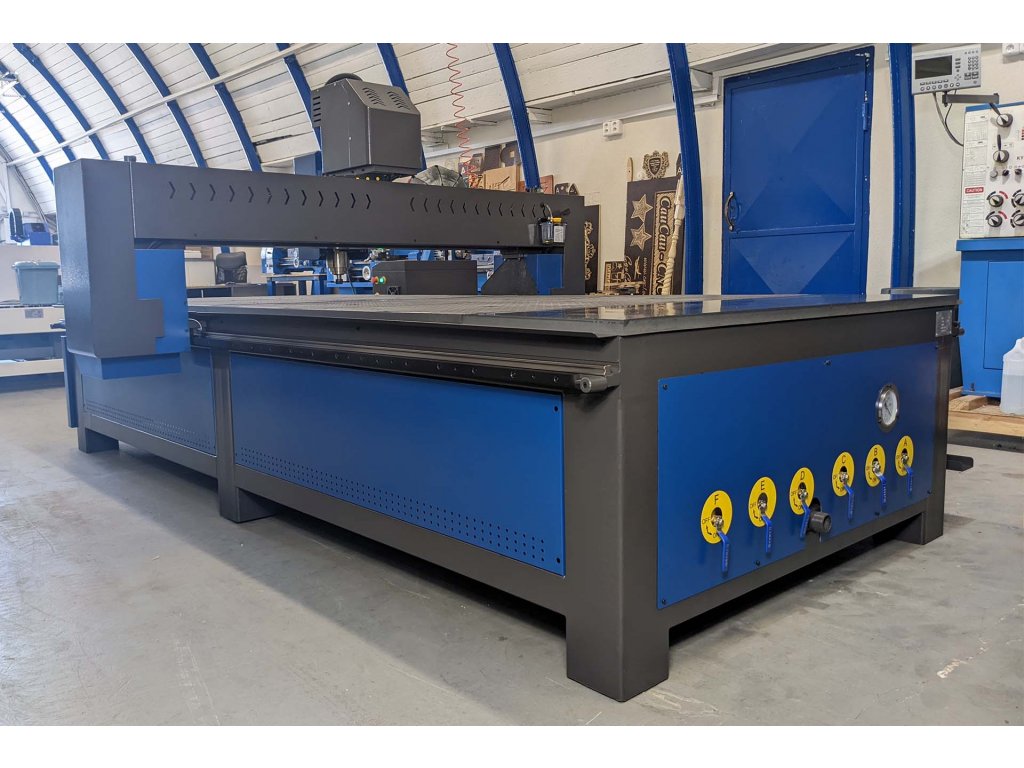

CNC Router suitable for processing large material sizes. The whole machine is designed for demanding operation in industry. High quality HIWIN 25mm linear guides on all axes with ball screw and helical rack for highest accuracy. The machine is equipped with 3500W spindle with maximum speed of 24000 rpm. Inductive limit switches. The machine is controlled by an integrated computer with its own memory, which ensures stable and easy operation. The machine can be customized to your requirements.

We are a machine manufacturer, we will be happy to adapt the machine to your requirements, or we can make a custom-made machine for you.

The CNC machine includes:
