CNC Router Kompas F300

Code: F300
3 390 € 4 068 € incl. VAT
4-8 weeks
Computer
CAD/CAM Software
4th rotary axis
Extraction
Delivery offer
  • Work space: 200 x 300 x 150 mm
  • Maximum speed: 2400 mm/min
  • Accuracy: 0.03 mm
  • Spindle: 1500W High frequency asynchronous
  • Spindle speed: 6000 - 24000 rpm/min
  • Spindle chuck: ER16 (1-10 mm)
  • Control software: RichAuto
  • Control electronics: Profi6 RichAuto
  • Sensors: Yes inductive
  • Auto tool zero probe: Yes
  • Construction: Dural
  • Drive: Stepper Motors Nema34 5,4Nm
  • Rails X/Y/Z: Prismatic HGR20
  • Transmmission X/Y/Z: Ball screws
  • Dimensions: 800 x 900 x 800 mm
  • Set of tools: Yes 10pcs
  • Training: Yes
  • Support: Phone/Online
  • Warranty: Yes

Detailed information

Product detailed description

The CNC Machine is made in the EU - Directly from the manufacturer!

The best price/performance ratio. Professional massive CNC machine! The solid construction also predestines this machine for metalworking, engraving, marking, milling and carving of materials such as plastic, plexiglass, laminate, plywood, wood, MDF and many others. High-quality HGR rails and ball screws ensure extreme accuracy and a long life.

We are a machine manufacturer, we will be happy to adapt the machine to your requirements, or we can make a custom-made machine for you.

The CNC machine includes:

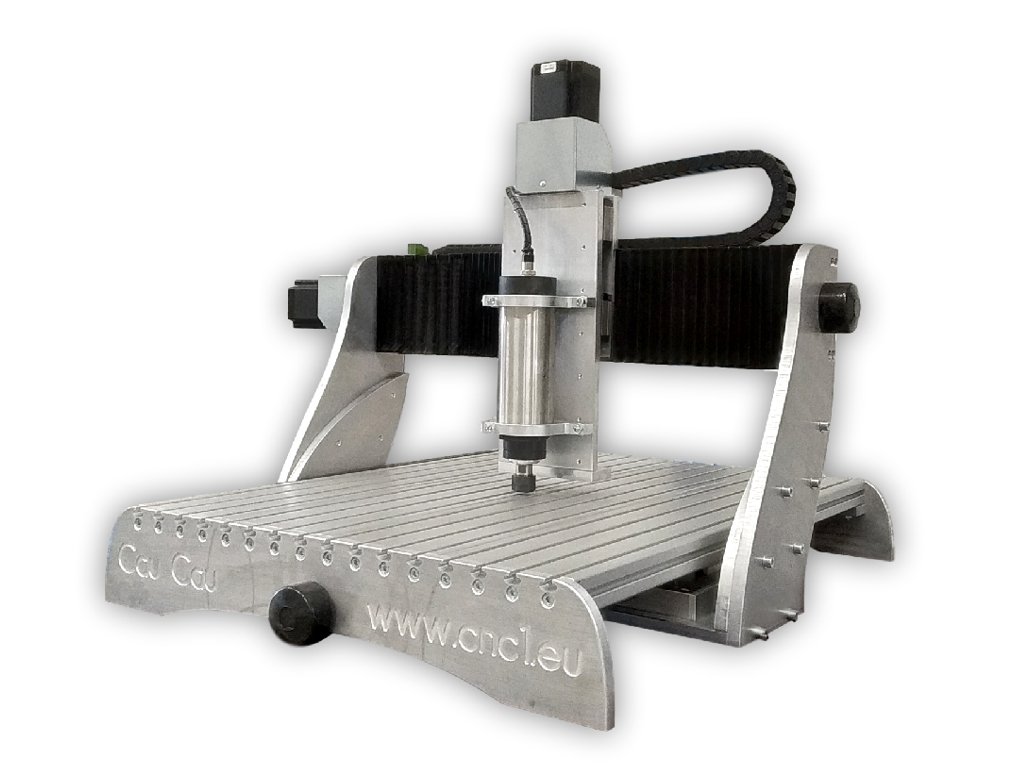

  • CNC Machine Kompas F300
  • 1500W Spindle
  • Inductive sensors
  • Tool length sensor
  • 10 pcs of tools
  • Collet set ER16
  • Wrenches
  • RichAuto control software
  • Basic training
  • Support
  • Warranty

The machine is suitable for processing:

  • Wood, Plywood, MDF
  • Plastic, Plexiglas, PVC
  • Composite, PCB, Laminate
  • Foam, Foil, Leather
  • Rubber, Cardboard
  • Gold, Silver, Bronze
  • Aluminium, Brass, Copper
  • Stone, Marble







All videos you can watch here: YouTube




In case of any questions, do not hesitate to contact us.



Miroslav Dudas

+421 915 451 978

info@cnc1.eu



Jan Dudas

+421 905 248 550

cnc1@cnc1.eu



Additional parameters

Category: CNC Routers
Weight: 60 kg
