    Home / Machines / CNC Routers / CNC Router Kompas F2040 Industry

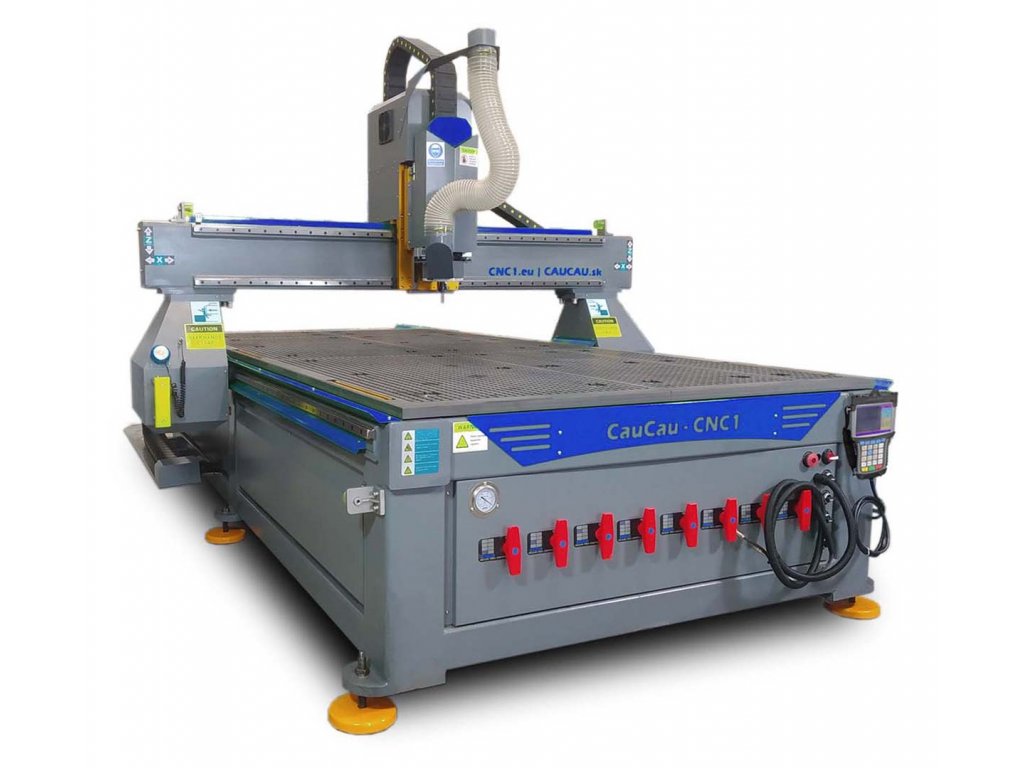

    CNC Router Kompas F2040 Industry

    Code: F2040INDUSTRY
    Not rated
    Brand: Cau Cau
    CNC Router F1530 Industry Blue 004
    23 900 € 28 680 € incl. VAT
    8-12 weeks
    Computer
    CAD/CAM Software
    4th rotary axis
    ATC ?
    Delivery offer
    • Work space: 2000 x 4000 x 300 mm
    • Maximum speed: 25000 mm/min
    • Accuracy: 0.03 mm
    • Spindle: 3000W High frequency asynchronous water cooled
    • Spindle speed: 6000 - 24000 rpm/min
    • Spindle chuck: ER20 (1-13 mm)
    • Control software: RichAuto B57E
    • Control electronics: Profi6 RichAuto B57E
    • Sensors: Yes induction
    • Auto tool zero probe: Yes
    • Lubrication: Central automatic
    • Table: Vacuum with T-slot
    • Vaccum pump: 2 x 7,5KW
    • Safety system: Yes Active
    • Extraction system: 300L, 3KW
    • Electronics parts: Schneider
    • Recovery function: Yes
    • Construction: Welded metal
    • Drive: Stepper Motors Nema34
    • Rails X/Y/Z: Taiwan HIWIN 25mm
    • Transmmission X/Y/Z: Helical racks + Ball screw
    • Dimensions: 2800 x 4700 x 2000 mm
    • Set of tools: Yes 10pcs
    • Training: Yes
    • Support: Phone/Online
    • Warranty: Yes

    Detailed information

    Related products

    CNC Router F1530 Industry Blue 004
    CNC Router Kompas F1530 Industry
    In stock (1 pcs)
    23 880 € incl. VAT
    19 900 €
    Detail

    Work space: 1500 x 3000 x 300 mm Maximum speed: 25000 mm/min Accuracy: 0.03 mm Spindle: 3000W High frequency asynchronous water cooled Spindle speed: 6000 - 24000 rpm/min...

    Code: F1530INDUSTRY
    CNC Router F1530 Industry Blue 004
    CNC Router Kompas F2030 Industry
    8-12 weeks
    26 280 € incl. VAT
    21 900 €
    Detail

    Work space: 2000 x 3000 x 300 mm Maximum speed: 25000 mm/min Accuracy: 0.03 mm Spindle: 3000W High frequency asynchronous water cooled Spindle speed: 6000 - 24000 rpm/min...

    Code: F2030INDUSTRY
    CNC Router H3000BIG Vacuum 020
    Sold more than 200ks
    CNC Router Kompas H3000T
    4-8 weeks
    8 280 € incl. VAT
    6 900 €
    Detail

    Work space: 1250 x 2500 x 200 mm Maximum speed: 10000 mm/min Accuracy: 0.03 mm Spindle: 3500W High frequency asynchronous water cooled Spindle speed: 6000 - 24000 rpm/min...

    Code: H3000T
    CNC Router H3000BIG Vacuum 002
    Sold more than 200ks
    CNC Router Kompas H3000VAC
    8-12 weeks
    9 480 € incl. VAT
    7 900 €
    Detail

    Work space: 1250 x 2500 x 200 mm Maximum speed: 10000 mm/min Accuracy: 0.03 mm Spindle: 3500W High frequency asynchronous water cooled Spindle speed: 6000 - 24000 rpm/min...

    Code: H3000VAC
    Cut2D Pro
    FREEFREE
    Cut2D Pro
    In stock (97 pcs)
    504 € incl. VAT
    420 €
    Code: 1139
    VCarve Pro
    FREEFREE
    VCarve Pro
    In stock (99 pcs)
    792 € incl. VAT
    660 €
    Code: 1144
    Aspire
    FREEFREE
    Aspire
    In stock (98 pcs)
    2 160 € incl. VAT
    1 800 €
    Code: 1141
    CNC Router F1530 Industry Blue 004
    CNC Router Kompas F1325 Industry
    8-12 weeks
    21 480 € incl. VAT
    17 900 €
    Detail

    Work space: 1300 x 2500 x 300 mm Maximum speed: 25000 mm/min Accuracy: 0.03 mm Spindle: 3000W High frequency asynchronous water cooled Spindle speed: 6000 - 24000 rpm/min...

    Code: F1325INDUSTRY
    Show all related products Previous product Next product

    Product detailed description

    CNC machine assembled and tested in the EU!

    CNC Router suitable for processing large material sizes. The whole machine is designed for demanding operation in industry. High quality HIWIN 25mm linear guides on all axes with ball screw and helical rack for highest accuracy. The machine is equipped with 3000W spindle with maximum speed of 24000 rpm. Inductive limit switches. The machine is controlled by an integrated computer with its own memory, which ensures stable and easy operation.

    We are a machine manufacturer, we will be happy to adapt the machine to your requirements, or we can make a custom-made machine for you.

    The CNC machine includes:

    • CNC Machine Kompas F2040 Industry
    • 3000W Spindle water cooled
    • Inductive sensors
    • Tool length sensor
    • Automatic central lubrication
    • Vacuum Table with T-Slots and 2 x 7,5KW pump
    • Extraction System 300L 3KW
    • Active safety system
    • 10 pcs of tools
    • Collet set ER20
    • Wrenches
    • RichAuto B57E System
    • Basic training
    • Support
    • Warranty

    The machine is suitable for processing:

    • Wood, Plywood, MDF
    • Plastic, Plexiglas, PVC
    • Composite, PCB, Laminate
    • Foam, Foil, Leather
    • Rubber, Cardboard
    • Gold, Silver, Bronze
    • Aluminium, Brass, Copper
    • Stone, Marble









    All videos you can watch here: YouTube



    In case of any questions, do not hesitate to contact us.



    Miroslav Dudas

    +421 915 451 978

    info@cnc1.eu



    Jan Dudas

    +421 905 248 550

    cnc1@cnc1.eu



    Additional parameters

    Category: CNC Routers
    Weight: 2500 kg
