CNC Plasma Kompas P2000

Code: P2000

Not rated

Brand: Cau Cau

6 600 € 7 920 € incl. VAT

In stock

Delivery offer
Plasma Source
Compressor

Work space: 1000 x 2000 x 80 mm
Maximum speed: 12000 mm/min
Accuracy: 0.2 mm
Active "Z" axis: Yes
Table: With water bath
Control software: MyPlasm CNC System
Control electronics: MyPlasm CNC System
Construction: Welded metal
Drive: Stepper Motors Nema23
Rails X/Y/Z: Prismatic HGR20
Transmmission X/Y/Z: Gear racks
Dimensions: 1600 x 2400 x 1200 mm
Training: Yes
Support: Phone/Online
Warranty: Yes

Detailed information

Show all related products

Product detailed description

CNC machine manufactured in EU - directly from manufacturer!

P - Series

Accuracy without compromise: With an accuracy of 0.2 mm, the CNC plasma cutter is ready to meet even the most demanding requirements.
Optimal Speed: The maximum speed of 10000 mm/min ensures quick and efficient cutting of your parts.
Powerful Plasma Source: Plasma sources from Hypertherm and Alfain can handle even the most challenging tasks.
Easy Operation: The MyPlasmCNC control system makes operating the machine simple and intuitive, allowing for efficient use of time and resources.

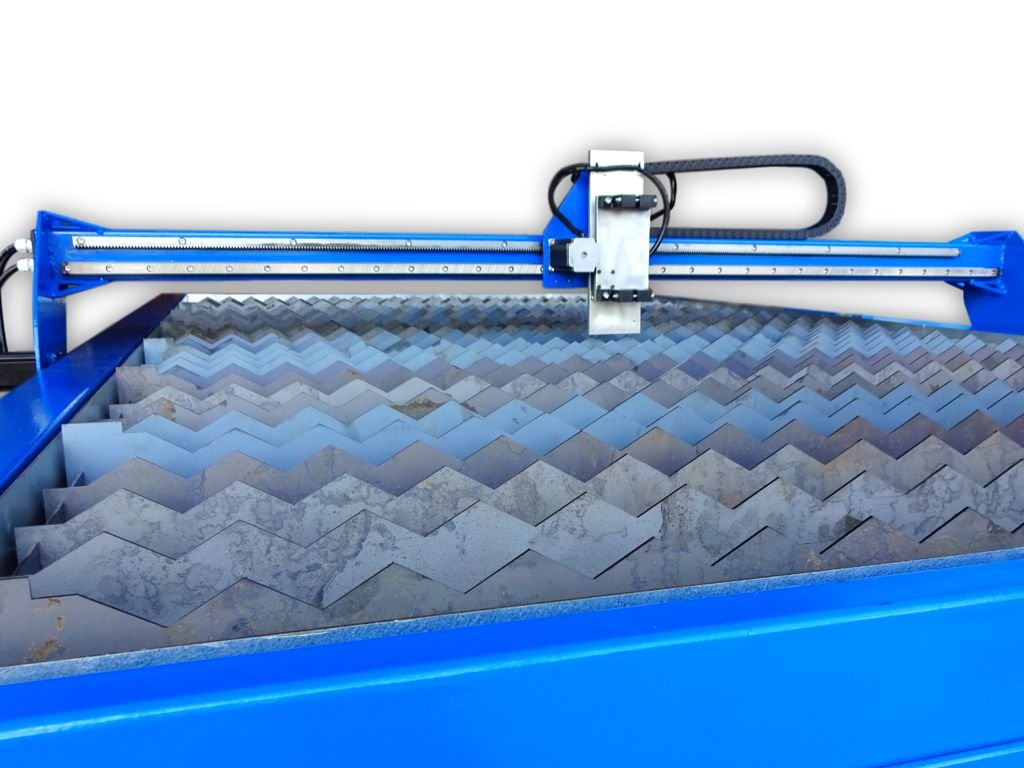

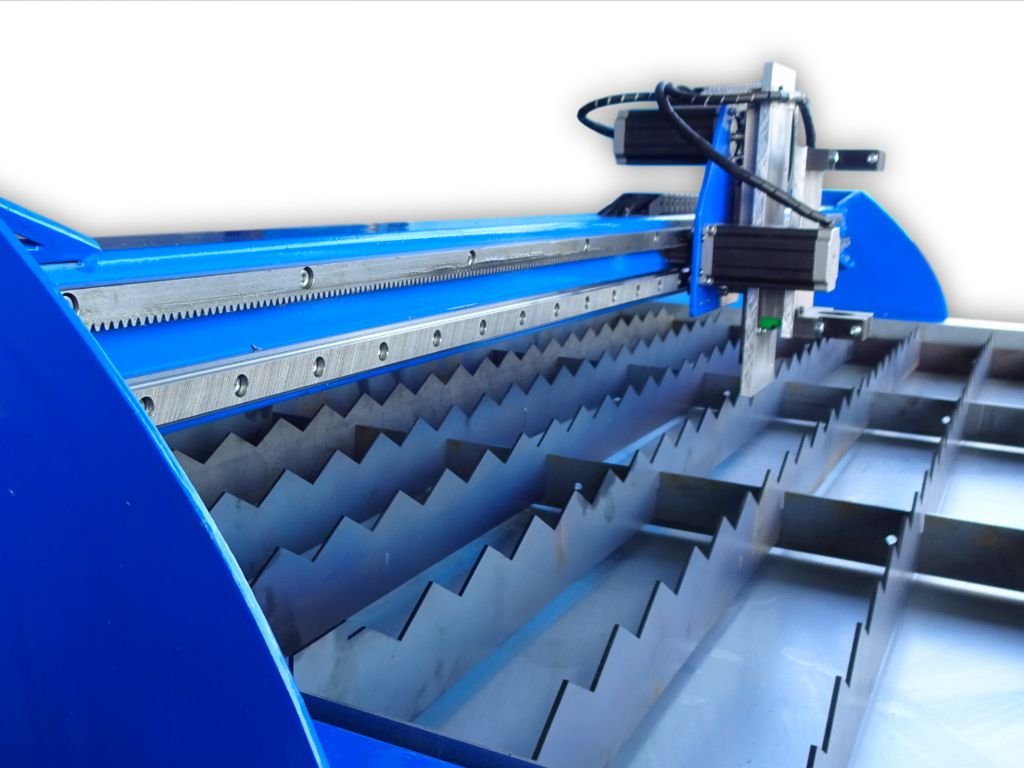

CNC Plasma P2000

CNC Plasma P - SERIES is designed for small to medium-sized production facilities that require a reliable and efficient metal cutting machine. This series combines proven technologies with precise engineering to deliver high-quality cuts at an affordable price.

Key Features and Benefits:

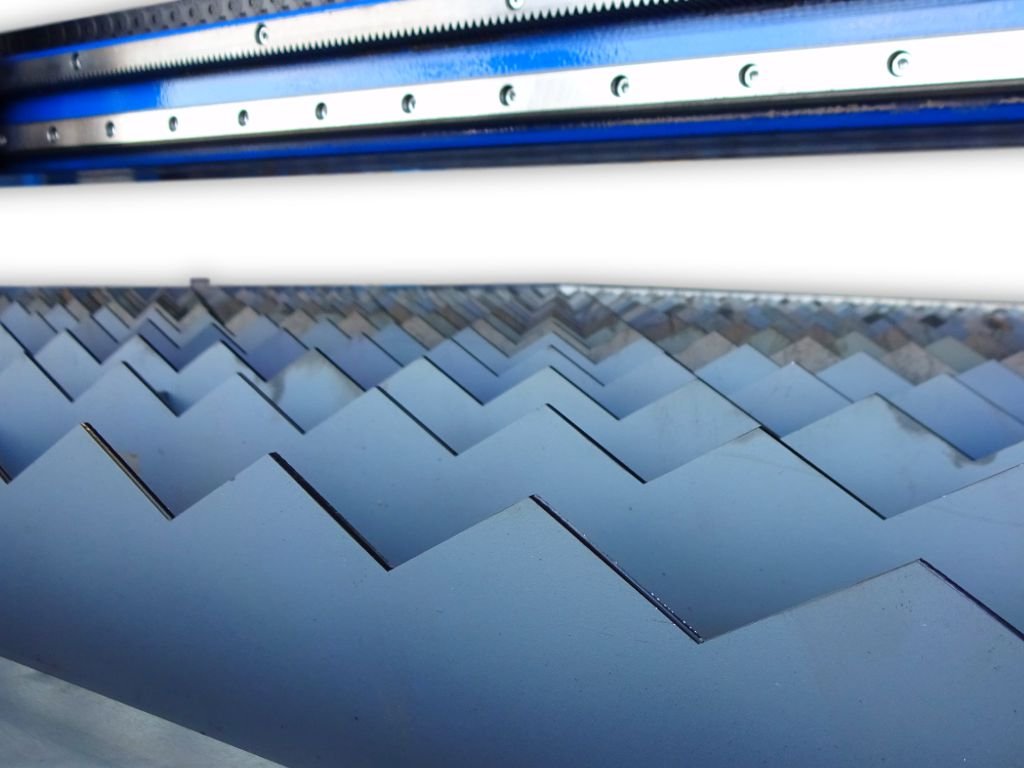

Precise HGR Linear Guides: Ensures maximum accuracy and smooth movement on all axes.

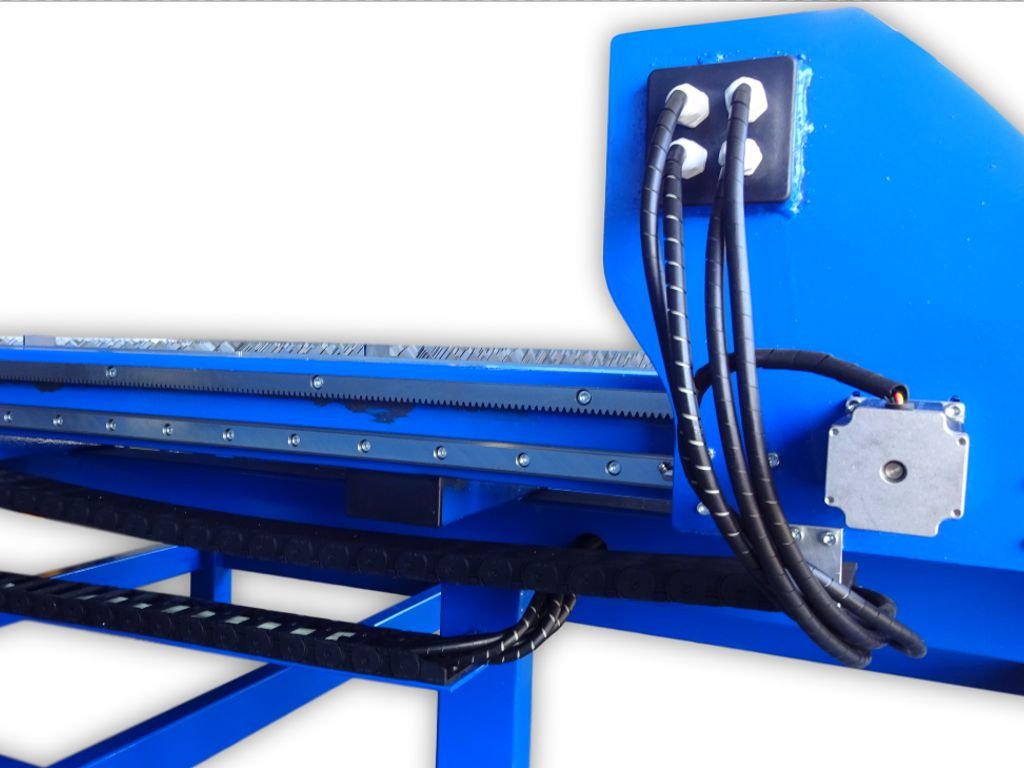

Powerful Stepper Motors: High-quality stepper motors and gearboxes provide reliable and efficient machine operation.
Grate Embedded in Water Tank: Minimizes smoke generation and thermal distortion of the material, improving cut quality.

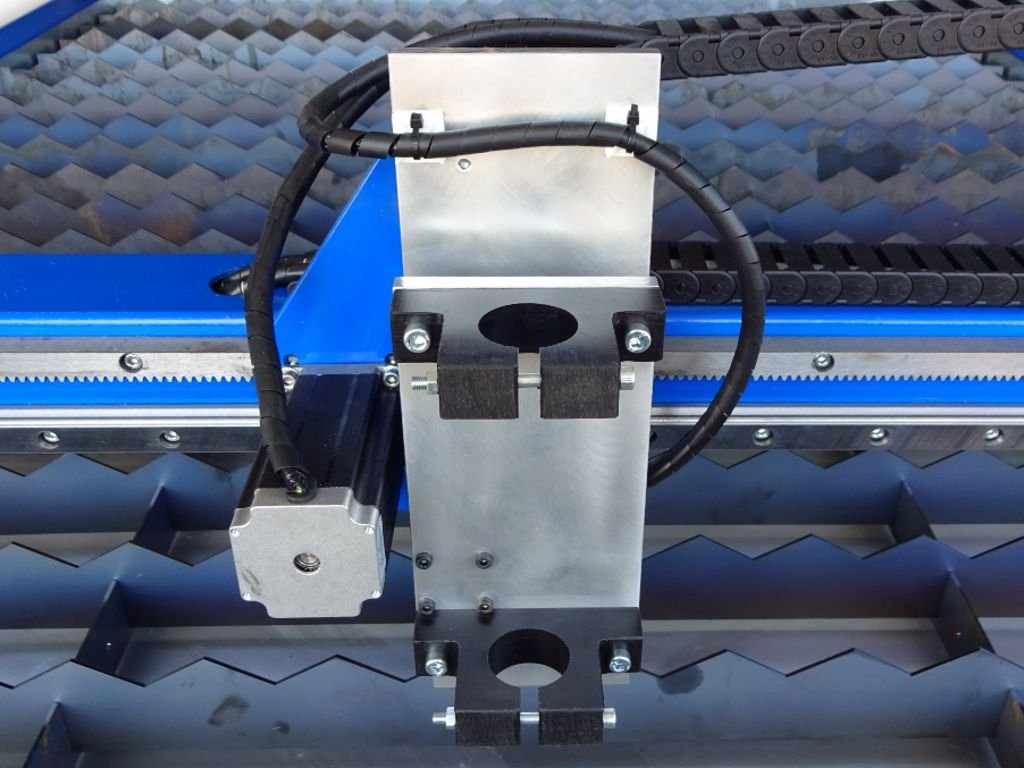

Active Z-Axis: Automatic height measurement before each ignition combines ohmic and floating measurement for maximum accuracy.
AUTO THC System: Automatic torch height control during cutting ensures consistent cut quality.
Intuitive MyPlasmCNC Control System: The most intuitive system in the world, integrating CAD/CAM functionality into a single software, eliminating the need for additional software.
Top Plasma Sources: The machine is compatible with CNC plasma sources from leading global manufacturers like Alfain and Hypertherm Powermax, ensuring your machine is equipped with the best available on the market.

The CNC Plasma P - SERIES is an ideal choice for those seeking a reliable and cost-effective machine for their production needs. Invest in proven technologies to enhance productivity and ensure high-quality results for your products.

The CNC machine includes:
